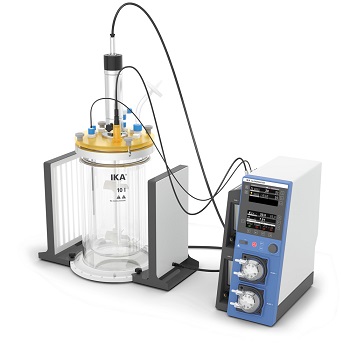

Foto bioreactor IKA Algaemaster 10 control
Date Tehnice
| Useable volume |
6000 – 10000 ml |
| Useable volume with temperature probe min. |
6000 ml |
| Viscosity max. |
100 mPas |
| Speed range |
10 – 100 rpm |
| Permissible ON time |
100 % |
| Temperature measurement resolution |
0.1 K |
| pH measuring range |
0 – 13 pH |
| Accuracy of pH measurement |
0.1 pH |
| pH measurement resolution |
0.01 pH |
| Cooling medium temperature |
4 – 60 °C |
| Speed deviation |
5 ±rpm |
| Speed display |
TFT |
| Heat control |
TFT |
| Connection for ext. temperature sensor |
PT 100 |
| Stirring element fastening |
special output shaft |
| Timer |
yes |
| Timer display |
TFT |
| Speed control |
1 RPM steps |
| Type of cooling |
flow |
| Temperature display |
yes |
| Temperature control |
PT 100 |
| Working temperature sensor |
PT 100 |
| Working temperature display |
TFT |
| Display for operation with ext. sensor |
yes |
| Reversible direction of rotation |
yes |
| pH meter interface |
yes |
| pH value display |
TFT |
| Dimensions (W x H x D) |
800 x 1000 x 600 mm |
| Weight |
38 kg |
| Permissible ambient temperature |
5 – 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 21 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage |
100 – 240 V |
| Frequency |
50/60 Hz |
| Power input |
375 W |
