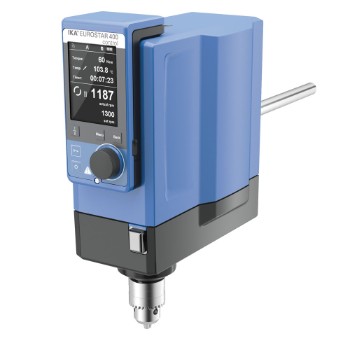

Agitator mecanic inversat IKA EUROSTAR 400 control
Date tehnice
| Stirring quantity max. per stirring position (H2O) |
150 l |
| Motor rating input |
220 W |
| Motor rating output |
176 W |
| Motor principle |
Brushless DC |
| Speed display |
TFT |
| Speed range |
0/6 – 2000 rpm |
| Intermittent operation |
yes |
| Viscosity max. |
100000 mPas |
| Output max. at stirring shaft |
167 W |
| Permissible ON time |
100 % |
| Torque max. at stirring shaft |
400 Ncm |
| torque I max. |
400 Ncm |
| torque II max. |
80 Ncm |
| Speed range I (50 Hz) |
6 – 400 rpm |
| Speed range II (50 Hz) |
30 – 2000 rpm |
| Speed range I (60 Hz) |
6 – 400 rpm |
| Speed range II (60 Hz) |
30 – 2000 rpm |
| Speed control |
stepless |
| Setting accuracy speed |
1 ±rpm |
| Deviation of speed measurement n > 300rpm |
1 ±% |
| Deviation of speed measurement n < 300rpm |
3 ±rpm |
| Stirring element fastening |
chuck |
| Connection for ext. temperature sensor |
PT1000 |
| Temperature display |
yes |
| Plug-in coupling (Ø) |
10 mm |
| Chuck range diameter |
0.5 – 10 mm |
| Hollow shaft, inner diameter |
10.3 mm |
| Hollow shaft (push-through – when stopped) |
yes |
| Fastening on stand |
extension arm |
| Extension arm diameter |
16 mm |
| Extension arm length |
160 mm |
| Torque display |
yes |
| Speed control |
electronic |
| Nominal torque |
4 Nm |
| Torque measurement |
trend |
| deviation of torque measurement I |
40 ±Ncm |
| deviation of torque measurement II |
12 ±Ncm |
| Timer |
yes |
| Timer display |
TFT |
| Time setting range |
1 – 6000 min |
| Temperature measuring range |
-10 – +350 °C |
| Temperature measurement resolution |
0.1 K |
| Accuracy of temperature measurement |
±0.05 + tolerance PT1000 (DIN IEC 751 Class A) K |
| Limit deviation temperature sensor |
≤ ± (0.15 + 0.002xITI) K |
| housing material |
alu-cast coating / thermoplastic polymer |
| communication distance (depend onbuilding) max. |
150 m |
| Dimensions (W x H x D) |
114 x 320 x 268 mm |
| Weight |
8.2 kg |
| Permissible ambient temperature |
5 – 40 °C |
| Permissible relative humidity |
80 % |
| Protection class according to DIN EN 60529 |
IP 40 |
| RS 232 interface |
yes |
| USB interface |
yes |
| Voltage |
230 / 115 / 100 V |
| Frequency |
50/60 Hz |
| Power input |
226 W |
