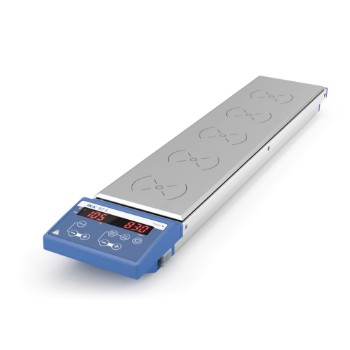

Agitator magnetic IKA RT 5

Date tehnice

Number of stirring positions	5
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Stirring quantity max. per stirring position (H2O)	0.4 l
Speed control	10 RPM Steps
Speed range	0 – 1000 rpm
Stirring bar length	25 – 30 mm
Heat output	175 W
Heating temperature range	Room temp. – 120 °C
Heat control	LED
Heating rate heating plate	3 K/min
Adjustable safety circuit	50 – 150 °C
Set-up plate material	Aluminium alloy
Set-up plate dimensions	110 x 495 mm
Dimensions (W x H x D)	120 x 60 x 610 mm
Weight	4 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	200 W
