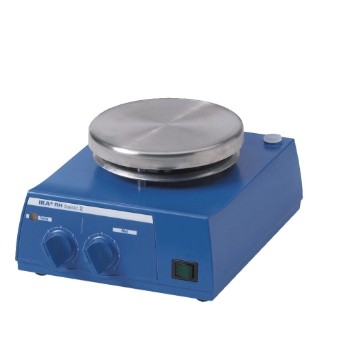

Agitator magnetic IKA RH basic 2

Date tehnice

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	10 l
Motor rating output	2 W
Speed control	scale 0 – 6
Speed range	100 – 2000 rpm
Heat output	400 W
Heating temperature range	Room temp. – 320 °C
Heat control	scale 1 – 6
Fixed safety circuit	400 °C
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	Ø 125 mm
Dimensions (W x H x D)	168 x 105 x 220 mm
Weight	2.4 kg
Permissible ambient temperature	5 – 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	220 – 240 / 115 / 100 V
Frequency	50/60 Hz
Power input	415 W
