Kaefer manometre pentru grosime analogice

Kafer manometre pentru grosime analogice

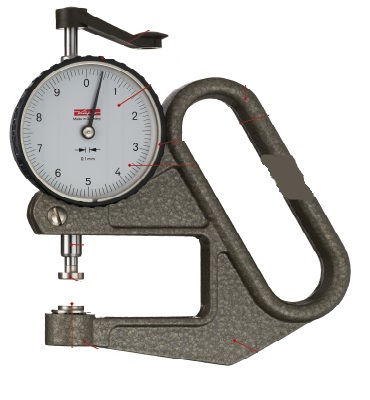

Aparate de masurat grosimea mecanice

Dial Gauges sunt utilizate pentru masurarea grosimii unei game foarte variate de materiale cum ar fi piele, carton, hartie, pasla, cauciuc, sticla, foaie, metal, filme, placaj si materiale plastice. Forma fetelor trebuie adaptata la materialul masurat.

Oferim toate calibrele noastre de masurare a temperaturii Dial cu puncte de contact de tip c ca standard, cu exceptia cazului in care se prevede altfel in catalogul nostru. Manometrele pot fi livrate cu alte forme de puncte de contact (a, b, d sau e) fara costuri suplimentare.



Modele manometre grosime analogice

Model	Citire	Raza	Diametru cadran	Caracteristici speciale
Kafer F 50	0.001 mm	5 mm	50
Kafer F 50 R	0.001 mm	5 mm	50
Kafer J 100	0.01 mm	10 mm	100	with lifting device
Kafer J 100 R	0.01 mm	10 mm	100	without side discs / with lifting device
Kafer J 100/30	0.01 mm	30 mm	100	with lifting device
Kafer J 12	0.01 mm	8 mm	12
Kafer J 15	0.01 mm	10 mm	18
Kafer J 200	0.01 mm	10 mm	200	with lifting device
Kafer J 200/30	0.01 mm	30 mm	200
Kafer J 300	0.01 mm	10 mm	300
Kafer J 300/30	0.01 mm	30 mm	300
Kafer J 400	0.01 mm	10 mm	400
Kafer J 400/30	0.01 mm	30 mm	400
Kafer J 45	0.01 mm	10 mm	45
Kafer J 50	0.01 mm	10 mm	50
Kafer J 50	0.01 mm	10 mm	50	with lifting device
Kafer J 50 R	0.01 mm	5 mm	50	with side discs / with lifting device
Kafer J 50 R	0.01 mm	5 mm	50	without side discs / with lifting device
Kafer J 50 W	0.01 mm	10 mm	50	with lifting device
Kafer J 50/3 WP	0.01 mm	20 mm	50	Corrugation Dial Thickness Gauge to EN 494 / with lifting device
Kafer J 50/30	0.01 mm	30 mm	50
Kafer J 50/30	0.01 mm	30 mm	50	with lifting device
Kafer J 50/30 R	0.01 mm	18 mm	50	without side discs / with lifting device
Kafer K 100	0.1 mm	30 mm	100
Kafer K 15	0.1 mm	10 mm	15
Kafer K 15/2	0.1 mm	20 mm	15
Kafer K 200	0.1 mm	30 mm	200	with lifting device
Kafer K 300	0.1 mm	30 mm	300	with lifting device
Kafer K 300/50	0.1 mm	50 mm	300
Kafer K 400	0.1 mm	30 mm	400	with lifting device
Kafer K 50	0.1 mm	10 mm	50
Kafer K 50	0.1 mm	10 mm	50	with lifting device
Kafer K 50/2	0.1 mm	20 mm	50
Kafer K 50/3	0.1 mm	30 mm	50
Kafer K 50/5	0.1 mm	50 mm	50
Kafer F 1000/30	0.001 mm	1 mm	30	Foil Thicknessgauge with lifting device
Kafer F 1101/30	0.001 mm	1 mm	30	Foil Thicknessgauge with lifting device / Movement of Comparator Gauge
Kafer F 1101/30-0.1	0.001 mm	0.1 mm	30	Foil Thicknessgauge with lifting device / Movement of Comparator Gauge
Kafer Vliesdicken-messgerätDIN EN ISO 5084	0.01 mm	28 mm	200
Kafer Vliesdicken-messgerätDIN EN ISO 9073/2	0.01 mm	28 mm	200
